| Product Attribute | Attribute Value |
|---|---|
| Actuator Type | Toggle |
| Characteristic | C Curve |
| Current Rating | 20 A |
| Mounting Type | DIN Rail Mount |
| Number of Poles | 2 Pole |
| Overload | Thermal/Magnetic |
| Series | |
| Standards | UL1077 |
| Termination | Screws |
| Type | Thermal/Magnetic |
| Voltage Rating | 277 VAC ; 480 VAC; 120 VAC ; 60 VDC |
Overview

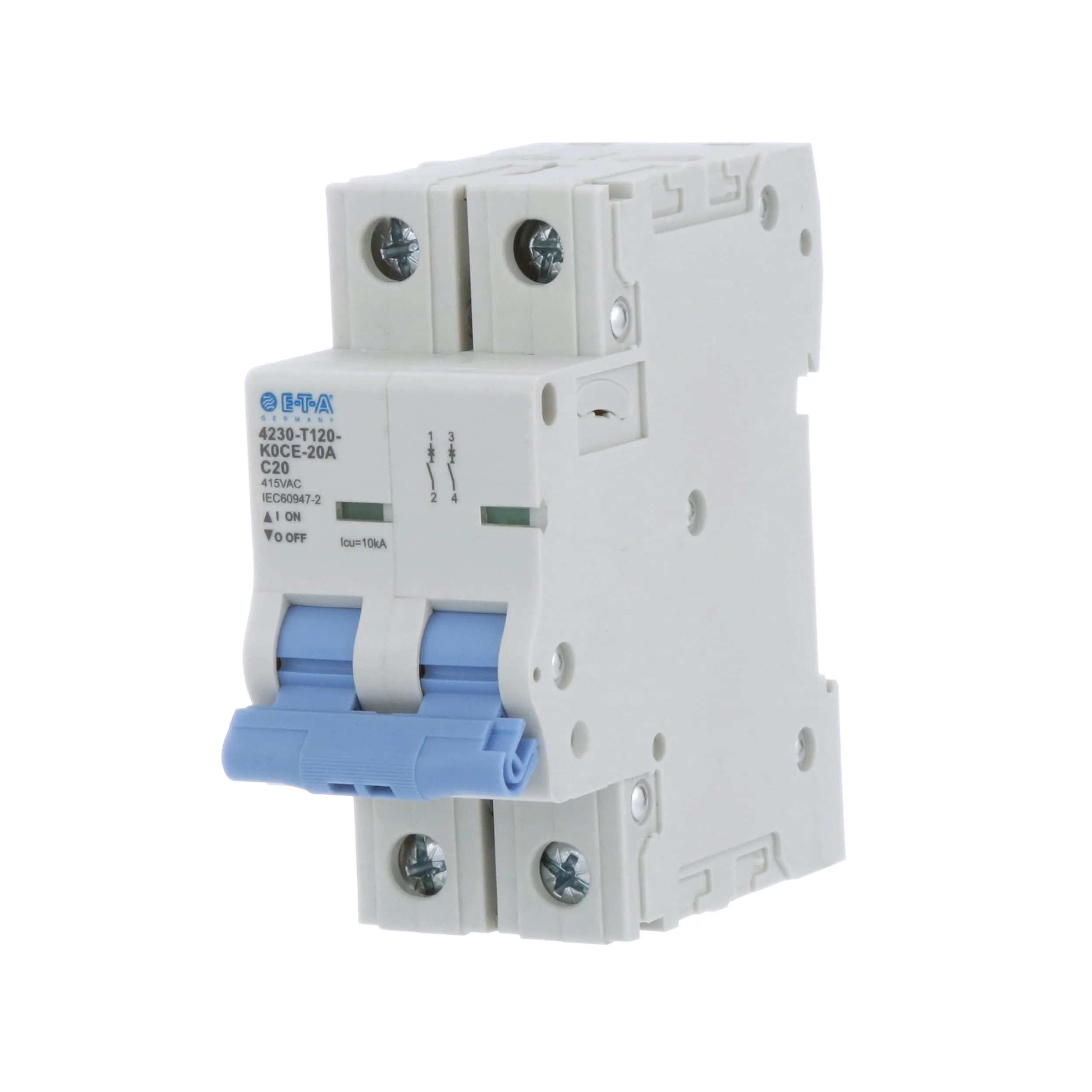

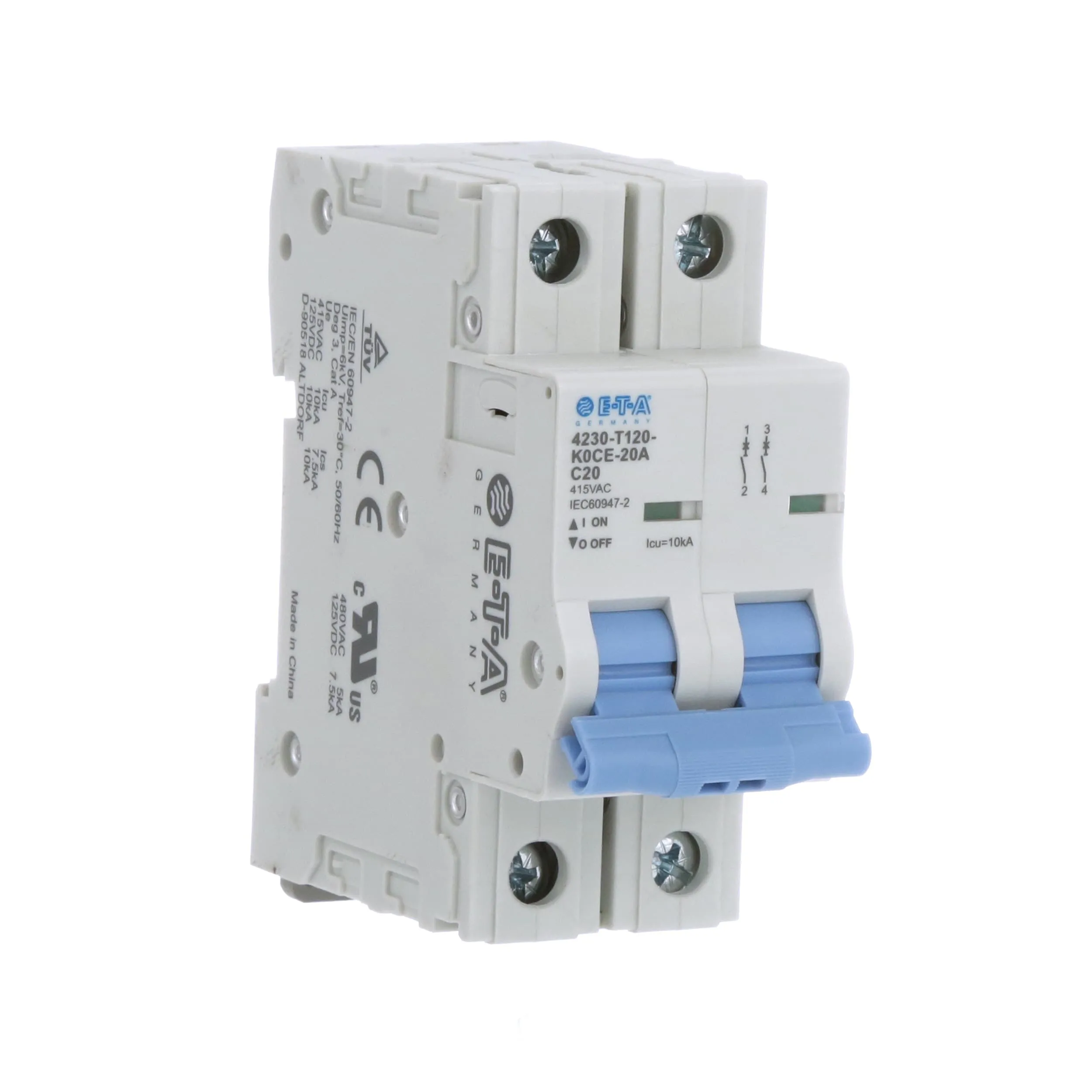

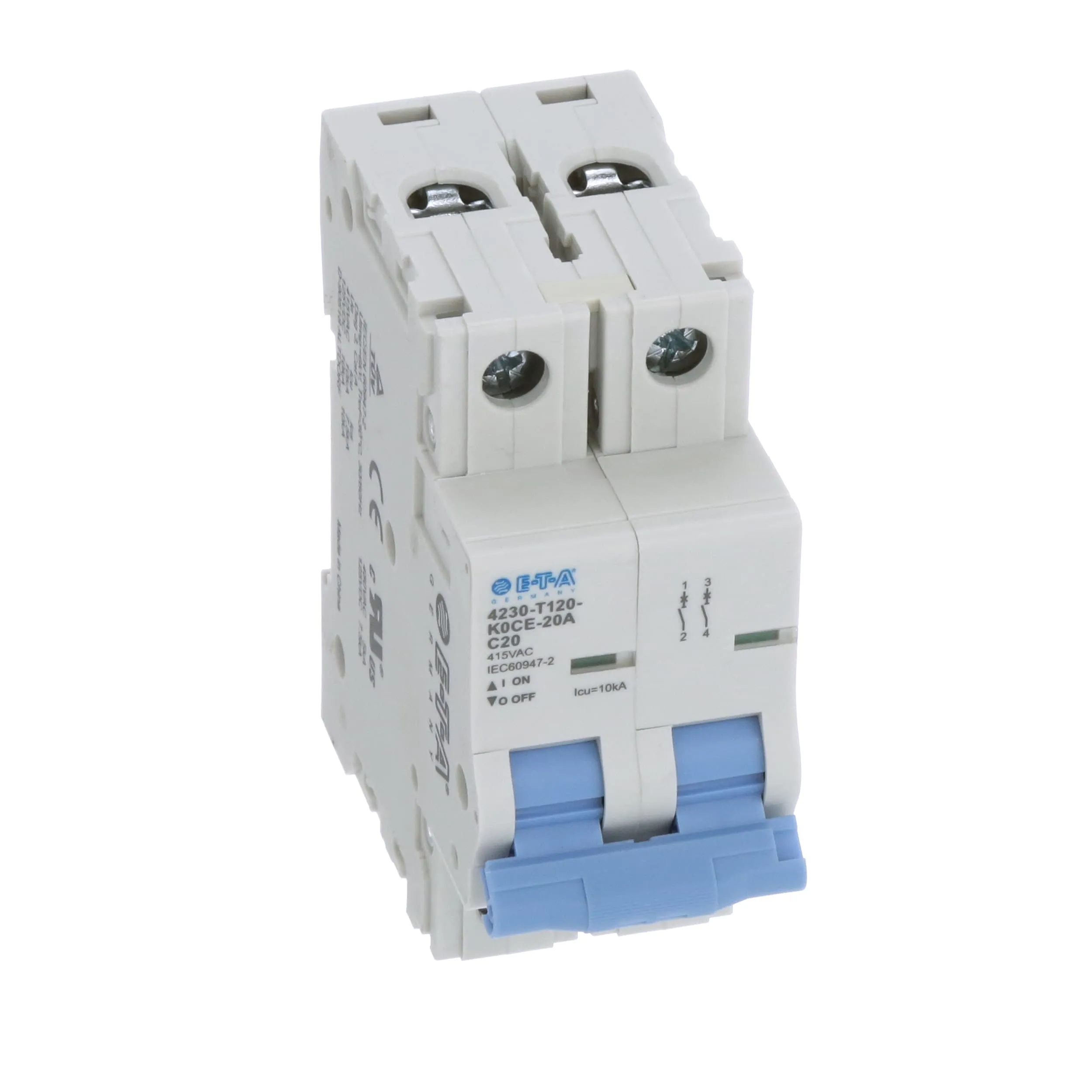

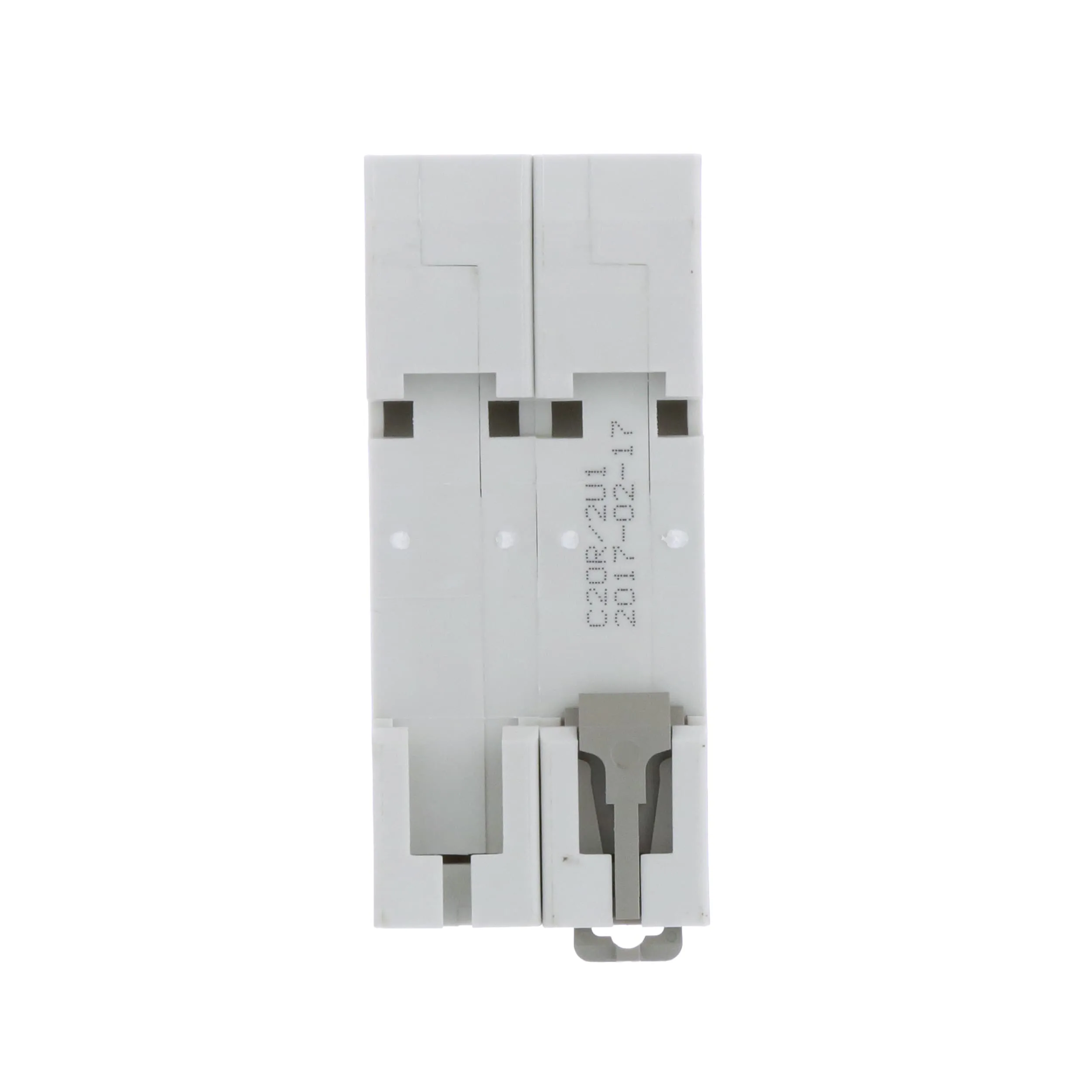

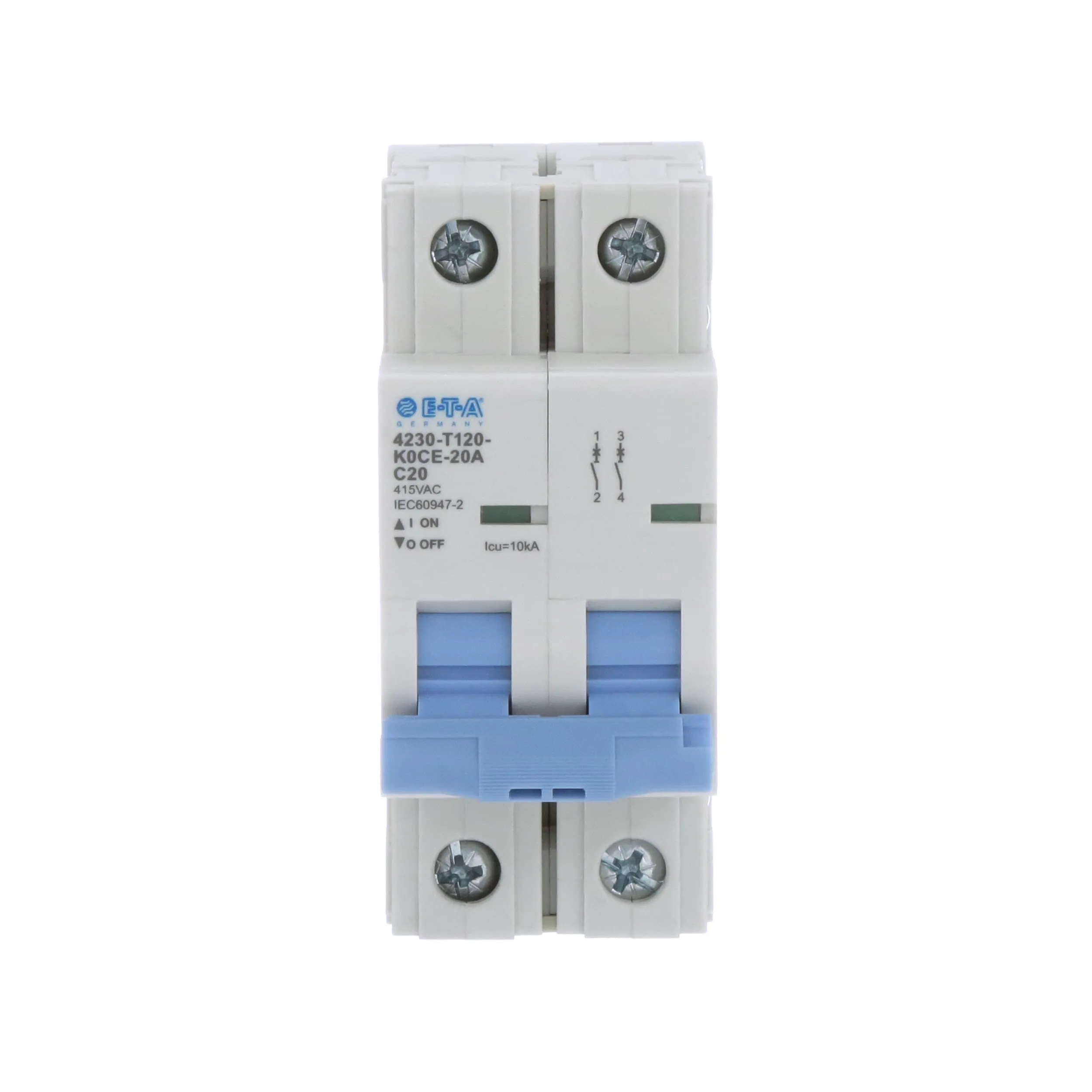

E-T-A introduces their single pole and multi-pole thermal magnetic miniature circuit breakers
(MCBs) in accordance with EN 60947-2, UL 1077 and UL 489 for DIN rail mounting
with toggle actuation, visual status indication and high rupture capacity.
A positively trip-free snap action mechanism ensures reliable switching
behavior. A range of trip characteristics and add-on modules make the 4230-T
suitable for a variety of applications.
Benefits:
