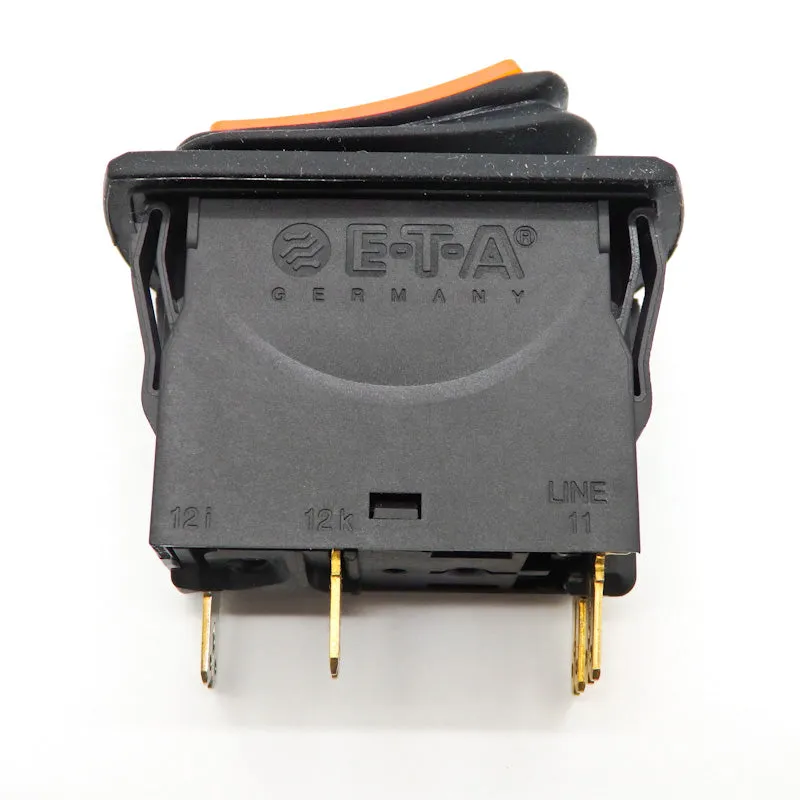

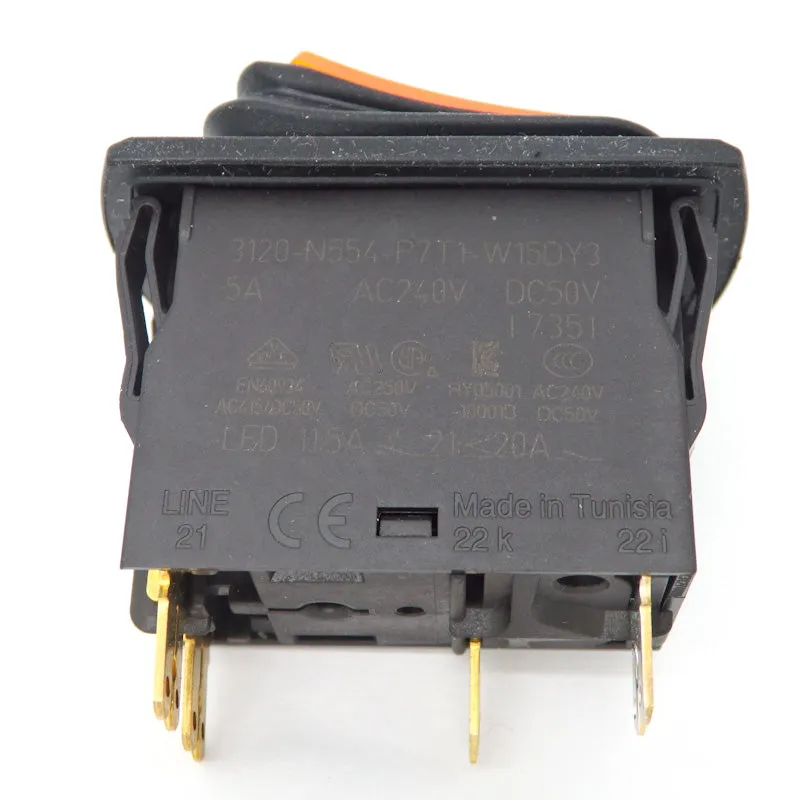

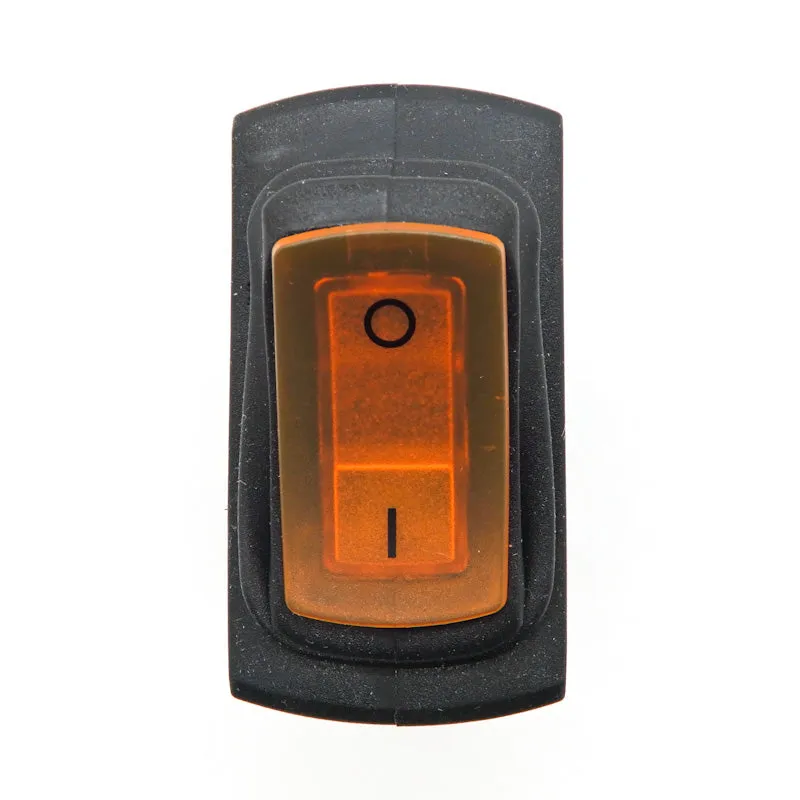

This is an E-T-A 5A AC240V Thermal Circuit Breaker Switch 3120-N554-P7T1-W15DY3-5A. The 3120 thermal circuit breaker/switch combination unites overcurrent protection and the function of an ON/OFF switch within a single component. The trip element is a thermal bimetal. Type 3120 is ideally suited for overload protection of motors, pumps, transformers and cables. After tripping, it can reliably, easily and quickly be reset. The positively trip-free mechanism ensures reliable disconnection of the circuit even with the actuator blocked. This item comes as pictured and does not include any additional parts or accessories.
Applications:
- Medical and laboratory equipment, apparatus and machine construction, professional tools, household and garden appliances, offices machines, audio equipment, machine tools
Specifications:
- Manufacturer: E-T-A
- Series: 3120-N
- Mounting Type: Panel Mount
- Breaker Type: Thermal
- Current Rating (Amps): 5A
- Voltage Rating - AC: 240 V
- Voltage Rating - DC: 50 V
- Actuator Type: Rocker
- Number of Poles: 2
- Illumination: Orange
- Illumination Voltage (Nominal): 115V
- Approval Agency: CSA, KTL, UL, VDE
