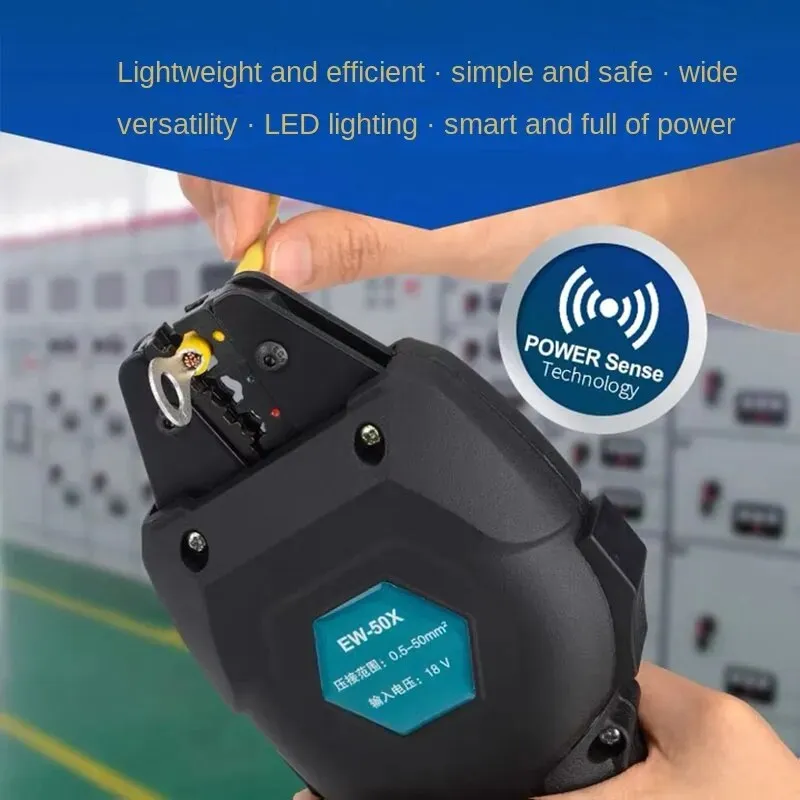

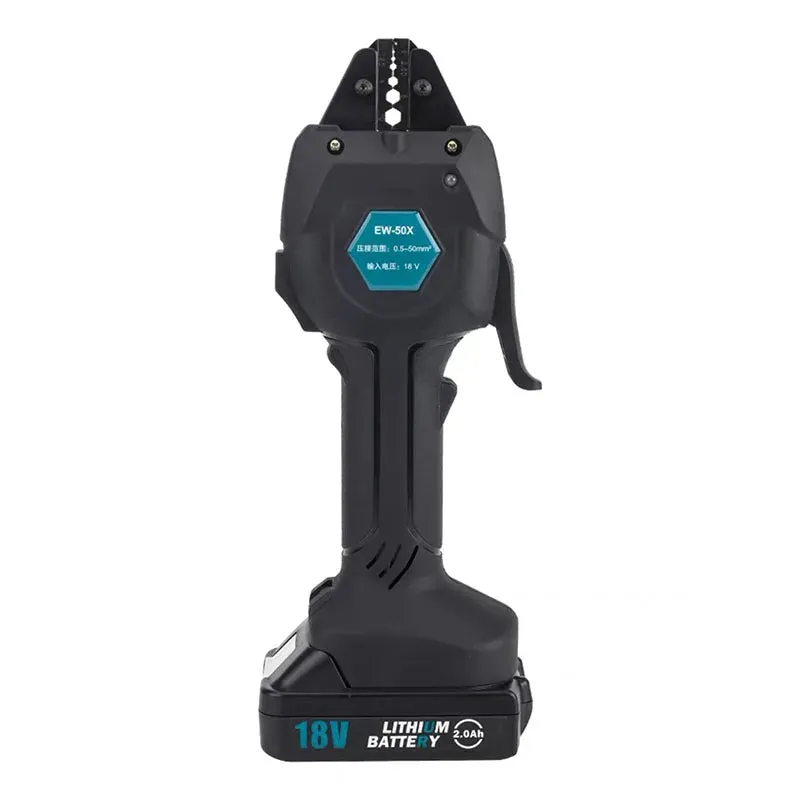

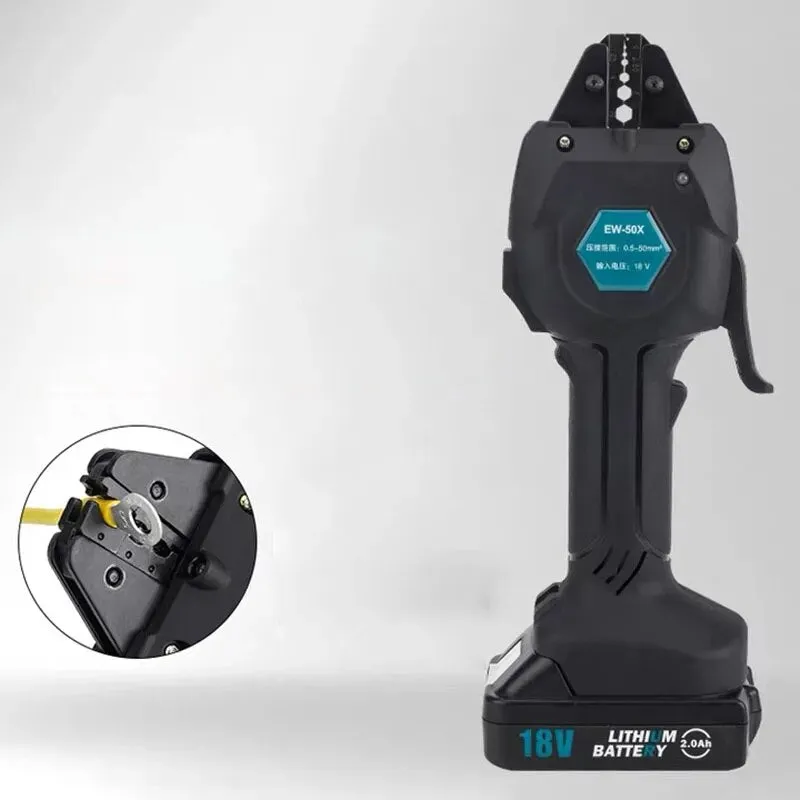

18V Rechargeable Crimping Tool 16KN Electric Crimping Tool, Terminal Pre-insulated Tube Type Bare Terminal Crimping Tools

Feature

Simple and safe: One-key operation concept, control all tool functions

Electronic control monitoring module with lock function

Completely closed, simple and safe: automatically retracts when the operation is completed

Manually shrink as needed

Motor stall protection

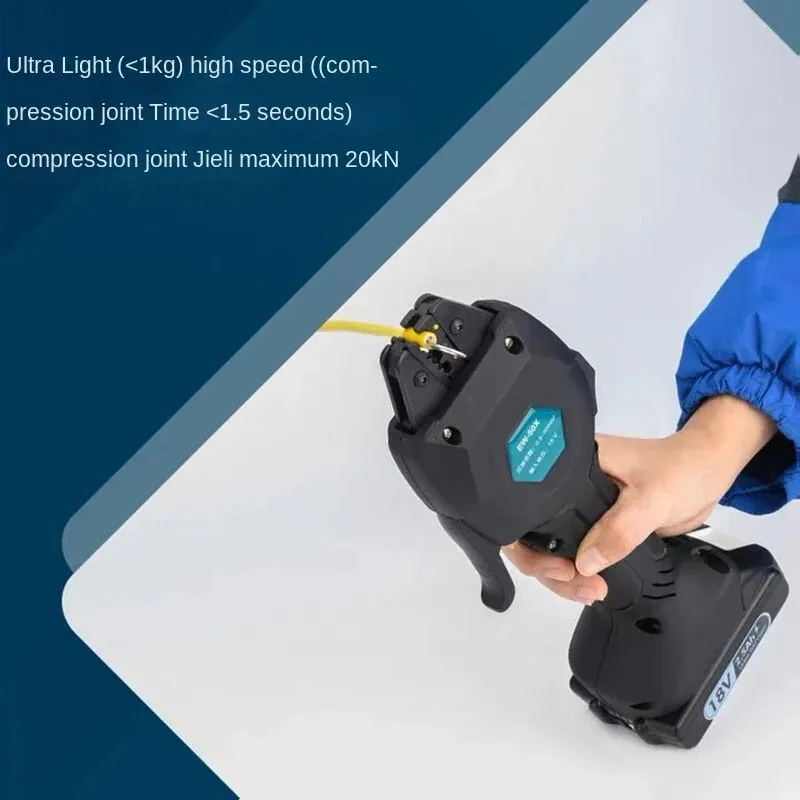

Extremely light weight, fast speed and highest efficiency

Powerful drive technology for easy operation

Powerful 10.8V lithium-ion battery that shows charging status

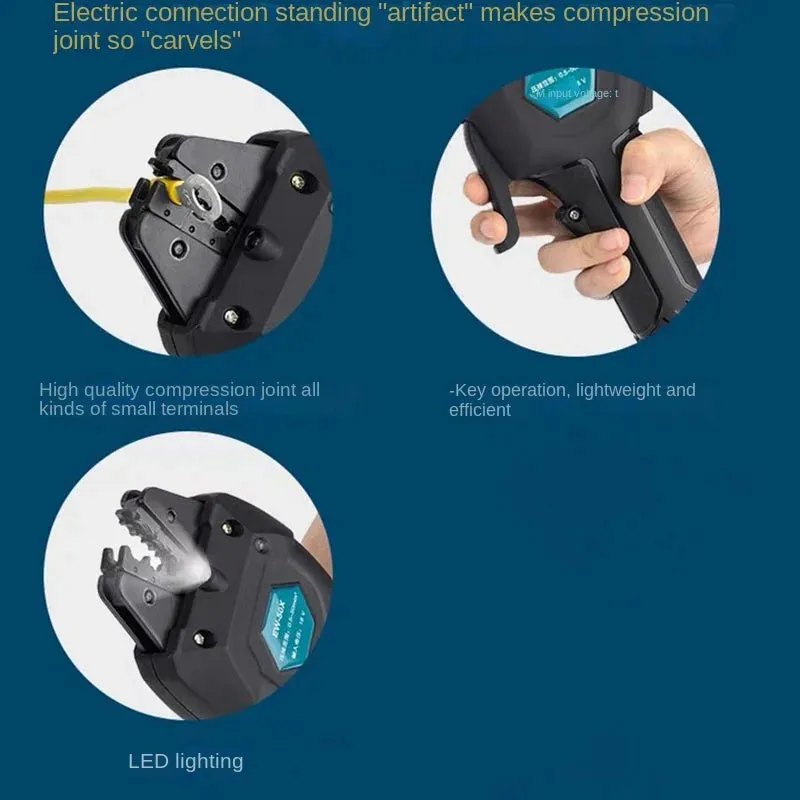

Work area LED lighting

Maintenance through LED display



Technical data

Crimping force: maximum 18kN

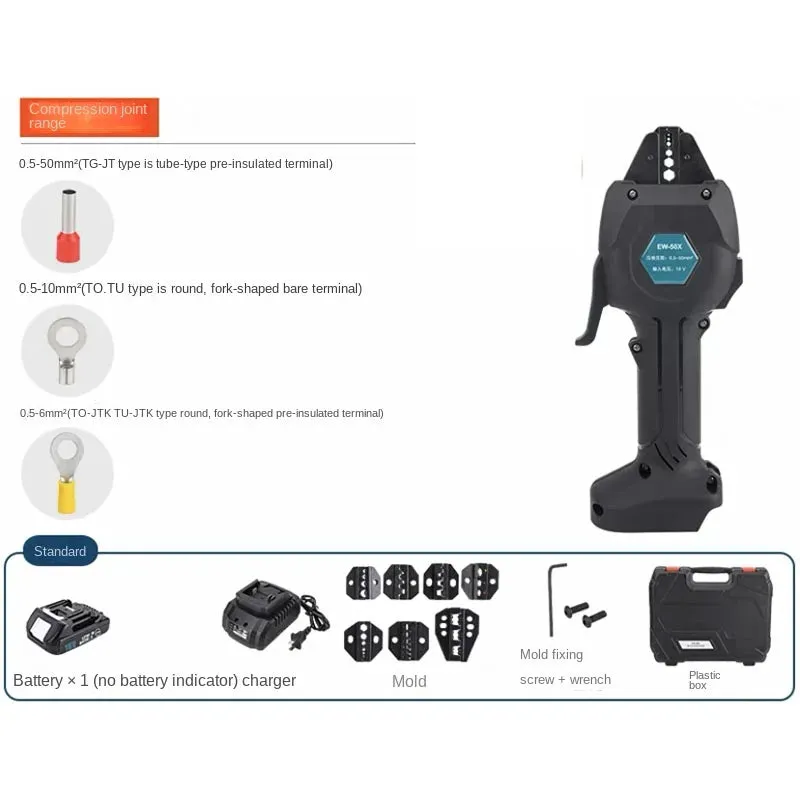

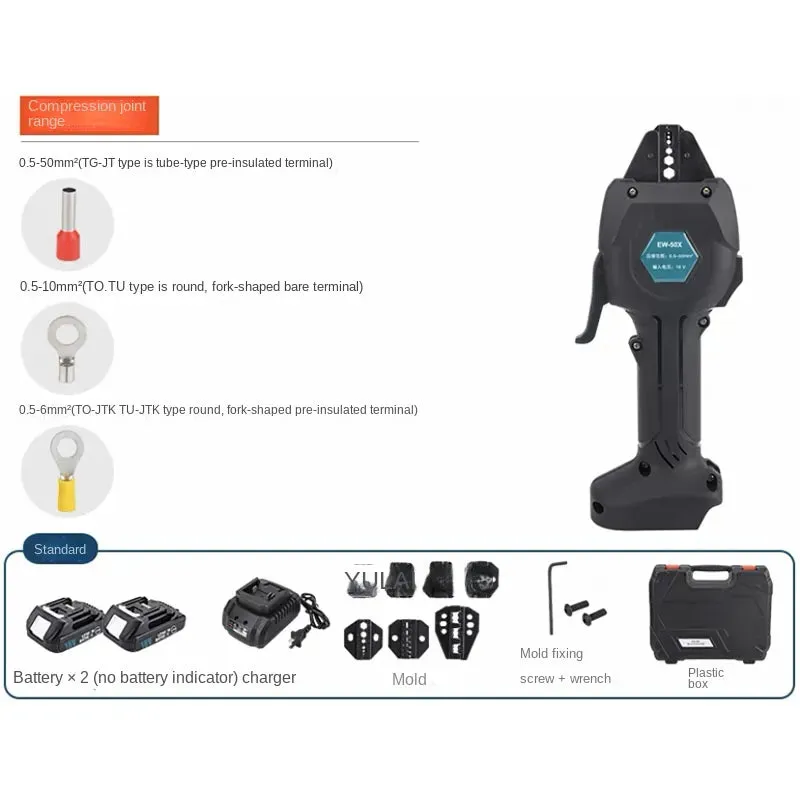

Crimping range:

0.5-50mm2 (TG-JT type namely tube type pre-insulated terminal)

0.5-10mm2 (TO.TU type that is round, fork-shaped bare terminals)

0.5-6mm2 (TO-JTK TU-JTK type round, fork-shaped pre-insulated terminal)



Number of crimping times: 10mm copper DIN, about 300 times per charge

Battery voltage: 18v

Battery capacity: 2.0Ah, lithium ion (upgradable to 2.5Ah)

Charging time: about 40 minutes

Weight (including battery): net weight 1kg gross weight 3.6kg

Ambient temperature: -10°C to 40°C

Product size: 262*112*73mm
